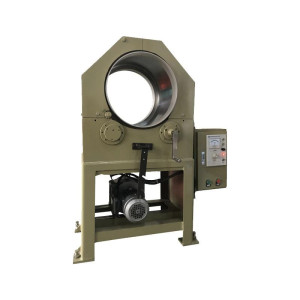

● The rod making machine is used to make unsaturated polyester resin rods.
● The automatic rod making machine adopts a continuous and simultaneous casting process to produce 4 different rods at the same time.
● Their shapes can be round, oval, square, etc. Available in single color or up to 4 colors.
● The pattern is shaped by the funnel, including fixed, swing and rotateing type.
Inquiry
● The automatic flying knife slicer is used to produce unsaturated polyester resin stick blanks.
● An extra large flywheel is installed on the sturdy body to cut off soft rods (up to 40 degrees in hardness).
● It also possesses capacity to cut off by multiple pipes atthe same time.
● What' s more, the water can be recycled automatically.
● Dual use of steam and electric heating, the wax bucket is used for waxing aluminum pipes and plays a lubricating role. Automatic lifting and lowering, easy to operate.

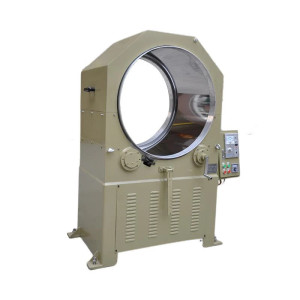

● The plate making machine is used to make unsaturated polyester resin plates. It is driven by specially made large roller rubber wheels.
● Automatic recycled hot and cold water system. And an additional sealing tape is attached to prevent resin from leaking into the bottom of the machine.
● The barrel has two types: flat and corrugated.
● And the inner layer is hard chromium plated with 30-50 microns.
● The plate making machine is used to make unsaturated polyester resin plates.
● Automatic hot and cold water system, equipped with waterproof tape to prevent resin from leaking into the bottom of the machine.
● The barrel is made of steel or stainless steel, and the inner layer is hard chromium plated with 20-30 microns.
● There are two types of inner surface shapes of the barrel: flat and corrugated.
● The number of corrugations generally includes standard numbers such as 47, 57, 63, 68 and 71. It supports to customize other numbers.

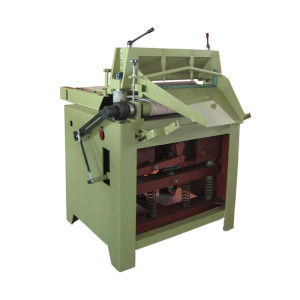

● The automatic punching machine is used to produce unsaturated polyester resin plate blanks.
● An extra large flywheel is installed on the sturdy body to punch hard and soft sheets (up to 70 degrees in hardness calculation method) and thick sheets (up to 13 mm).
● It is easy and quick to replace the punching tool holder. Different button sizes require different tool holders.

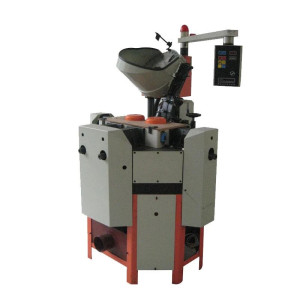

● This machine is a multifunctional button processing machine, suitable for single and double-sided processing of button blanks.
● It can process large button blanks, up to 90LIN. And it realizes electronically controlled stepless speed regulation, it’s generation range is from 10- 245 grains in one minute.
● Different types of workstations can be replaced to process buttons with various surface shapes and craft decorative buttons.
● At the same time, it also can be equipped with electric eye color identification device and laser color equipment to process complex patterns on the surface of the button blank.

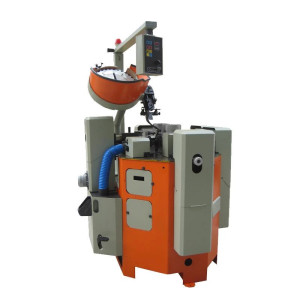

● This machine is a standard button processing equipment with a wide range of applications. It is suitable for single and double-sided processing of button blanks.
● It is simple and fast, with a maximum speed of 220 pieces/min. Different types of workstations can be replaced to complete the processing of different button patterns;
● According to needs, a frequency converter can be added or a variable frequency motor can be directly used to achieve stepless speed regulation, effectively reducing labor intensity.
● In the mena time, an electric eye color identification device can configure laser equipment to process sophistcated patterns on the surface of button blanks.

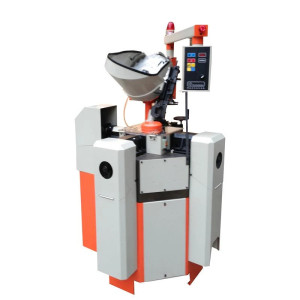

● This machine is good at process general buttons, it is suitable for single-sided processing button blanks.
● Diverse types of workstations can be replaced to complete the processing of different button patterns, which is simple and fast.
● Menwhile, it also can be equipped with electric eye color identification device and laser color equipment to process complex patterns on the surface of the button blank.
