Button punching speed: 60 to 100 times/minute (controlled by variable speed pit wheel)
Available blank sizes: 12# - 80# (up to No. 100 on special request)
Output: 2250/hour (calculated based on 18#) = 144 capsules each
Punching thickness: up to 13 mm
Motor: 2.2 HP
Net weight: 880kg
|
Model |
Name |
Volume |
Power |
Net Weight |
|
`CPJ 1-13mm |
Flat punching machine |
1120×1260×1400 |
1.5Kw |
800kg |
● The plate making machine is used to make unsaturated polyester resin plates. It is driven by specially made large roller rubber wheels.
● Automatic recycled hot and cold water system. And an additional sealing tape is attached to prevent resin from leaking into the bottom of the machine.
● The barrel has two types: flat and corrugated.
● And the inner layer is hard chromium plated with 30-50 microns.
● The plate making machine is used to make unsaturated polyester resin plates.
● Automatic hot and cold water system, equipped with waterproof tape to prevent resin from leaking into the bottom of the machine.
● The barrel is made of steel or stainless steel, and the inner layer is hard chromium plated with 20-30 microns.
● There are two types of inner surface shapes of the barrel: flat and corrugated.
● The number of corrugations generally includes standard numbers such as 47, 57, 63, 68 and 71. It supports to customize other numbers.

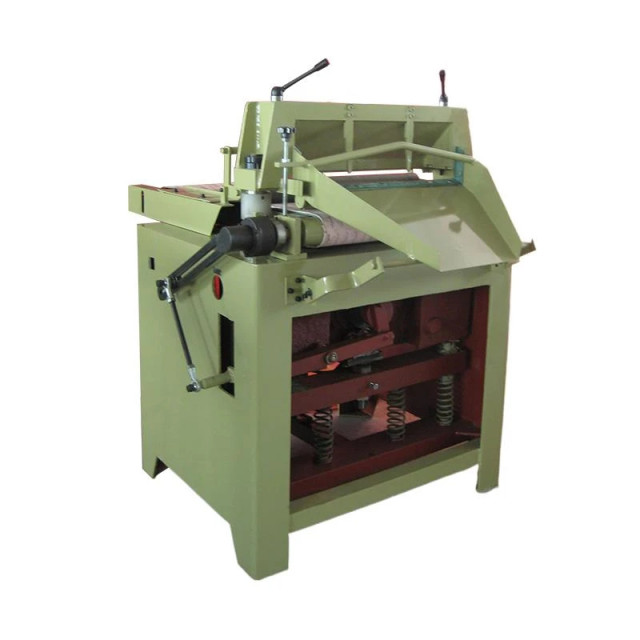

● The automatic punching machine is used to produce unsaturated polyester resin plate blanks.
● An extra large flywheel is installed on the sturdy body to punch hard and soft sheets (up to 70 degrees in hardness calculation method) and thick sheets (up to 13 mm).
● It is easy and quick to replace the punching tool holder. Different button sizes require different tool holders.
